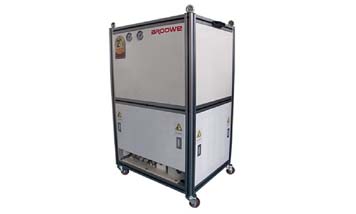

Standard Power
|
Type : |
BROOWE 120 |
BROOWE 140 |
BROOWE 160 |
|
Manufacturer: |
BROOWE |
BROOWE |
BROOWE |
|
Name: |
Standard Power Pack |
Standard Power Pack |
Standard Power Pack |
|
|
|
|
|
|
Operate mode |
Manual Control |
Manual Control |
Manual Control |
|
L×W×H(mm): |
1154*904*1484 |
1154*904*1484 |
1154*904*1484 |
|
Structure: |
Two Chest with Four Doors |
Two Chest with Four Doors |
Two Chest with Four Doors |
|
Max flow(l/min): |
23 |
55 |
80 |
|
Max pressure(mpa) |
21 |
21 |
21 |
|
P line: |
4 |
4 |
4 |
|
|
|
|
|
|
Warranty: |
2 Years |
2 Years |
2 Years |
|
|
|
|
|
|
Structure |
|
|
|
|
Size for forklift(mm): |
40*80 |
40*80 |
40*80 |
|
Ring size: |
M16 |
M16 |
M16 |
|
Distance Between Rings(mm): |
1150*900 |
1150*900 |
1150*900 |
|
|
|
|
|
|
Total weight(kg): |
300 |
450 |
550 |
|
Chest: |
2 |
2 |
2 |
|
Door quantity(pcs): |
4 |
4 |
4 |
|
Module design(pcs): |
3 |
3 |
3 |
|
Oil tank volume(l): |
100 |
150 |
200 |
|
|
|
|
|
|
Motor |
|
|
|
|
Brand: |
SY |
SY |
SY |
|
Power(kw): |
5.5 |
11 |
15 |
|
Power(hp): |
7.5 |
15 |
20 |
|
Voltage(V): |
380 |
380 |
380 |
|
Connection: |
Y |
Y |
Y |
|
Speed(rpm): |
1480 |
1480 |
1480 |
|
Power factor: |
0.85 |
0.85 |
0.85 |
|
Frequency(hz): |
50 |
50 |
50 |
|
|
|
|
|
|
Main pump |
|
|
|
|
Brand: |
YUKEN |
YUKEN |
YUKEN |
|
Type of main pump: |
Piston Pump |
Piston Pump |
Piston Pump |
|
Diagram: |
Pressure Compensator |
Pressure Compensator |
Pressure Compensator |
|
Control mode: |
Manual |
Manual |
Manual |
|
Max displacement(cc/r): |
16 |
37 |
56 |
|
Work pressure(mpa): |
16 |
16 |
16 |
|
Max. pressure(mpa): |
21 |
21 |
21 |
|
|
|
|
|
|
Valve |
|
|
|
|
Brand: |
DUPLOMATIC |
DUPLOMATIC |
DUPLOMATIC |
|
Tpye of main valve: |
Modular valve |
Modular valve |
Modular valve |
|
Max flow(l/min): |
100 |
100 |
100 |
|
Work pressure(mpa): |
31.5 |
31.5 |
31.5 |
|
Max. pressure(mpa): |
35 |
35 |
35 |
|
P1 |
|
|
|
|
Needle valve(A1/B1) |
● |
● |
● |
|
Directional control valve |
● |
● |
● |
|
Voltage for directional control valve: |
DC24V |
DC24V |
DC24V |
|
P2 |
|
|
|
|
Reducing valve (0-35mpa) |
● |
● |
● |
|
Directional control valve |
● |
● |
● |
|
Voltage for directional control valve: |
DC24V |
DC24V |
DC24V |
|
P3 |
|
|
|
|
Needle valve(A3/B3) |
● |
● |
● |
|
Pilot check valve(A3/B3) |
● |
● |
● |
|
Directional control valve: |
● |
● |
● |
|
Voltage for directional control valve: |
DC24V |
DC24V |
DC24V |
|
P4 |
|
|
|
|
Needle valve(A4/B4) |
● |
● |
● |
|
Pilot check valve(A4/B4) |
● |
● |
● |
|
Directional control valve: |
● |
● |
● |
|
Voltage for directional control valve: |
DC24V |
DC24V |
DC24V |
|
|
|
|
|
|
Safety equipment |
|
|
|
|
Electromagnetic controlled relief valve |
● |
● |
● |
|
Ball valve |
● |
● |
● |
|
|
|
|
|
|
Power unit |
|
|
|
|
Shock absorption device |
● |
● |
● |
|
|
|
|
|
|
Oil tank |
|
|
|
|
Air filter |
● |
● |
● |
|
Return filter |
● |
● |
● |
|
Level gauge |
● |
● |
● |
|
|
|
|
|
|
Block |
|
|
|
|
P3 (A3/B3): |
● |
● |
● |
|
P4 (A4/B4): |
● |
● |
● |
|
Pressure testing adapter |
|
|
|
|
Output |
|
|
|
|
A/B port: |
G1/2 |
G1/2 |
G1/2 |
|
Position |
Right |
Right |
Right |
|
|
|
|
|
|
Cooler |
|
|
|
|
Fan for oil tank |
● |
● |
● |
|
Fan for box |
● |
● |
● |
|
Sound insulation |
|
|
|
|
Sound insulation for box(reduce 20 db) |
● |
● |
● |
|
Sound insulation for door |
● |
● |
● |
|
|
|
|
|
|
Electrical |
|
|
|
|
Emergency button |
● |
● |
● |
|
A1/B1 control button |
● |
● |
● |
|
A2/B2 control button |
● |
● |
● |
|
A3/B3 control button |
● |
● |
● |
|
Return filter alarm |
● |
● |
● |
|
A4/B4 control button |
● |
● |
● |
|
Pressure gauge |
● |
● |
● |
|
- ● Standard accessory . | |||
|
- Non standard accessory, for more information, please contact with DRENNAN salesman. | |||
